Electrical systems depend on far more than conductors and current flow. Their long-term safety and reliability are shaped by how cables are physically supported, restrained, and protected from mechanical stress. In industrial, commercial, and infrastructure environments, wiring is exposed to vibration, temperature change, human interaction, and gradual system expansion. When cables are not properly supported, these forces accumulate quietly, leading to insulation wear, connector fatigue, and avoidable failures.
Wire holder clamps exist to manage this mechanical reality. They are not accessories added for neatness, nor are they interchangeable fasteners. Their material composition, load behavior, and placement directly influence how cables age and how safely electrical systems operate over time. A clear technical understanding of these clamps helps engineers, installers, and facility teams treat cable support as an engineered element rather than an afterthought.
What an Electrical Wire Holder Clamp Overview Covers in Practice

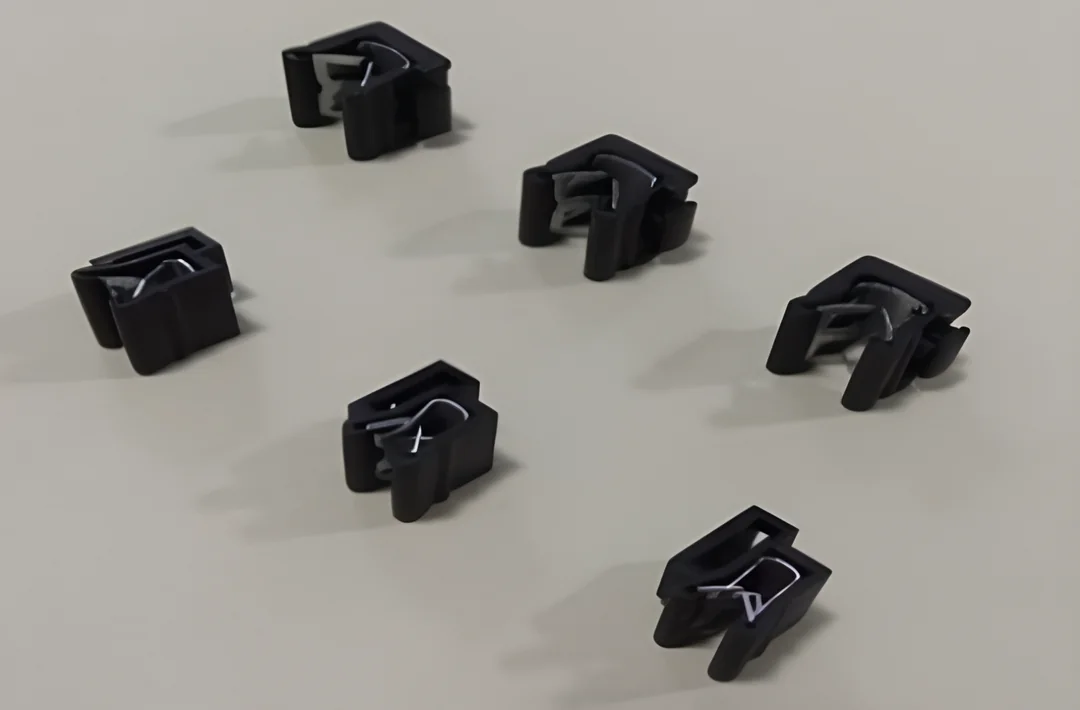

This electrical wire holder clamp overview focuses on how these components function as mechanical supports within electrical systems. A wire holder clamp secures cables to a structure, tray, panel, or enclosure, maintaining defined routing and spacing despite environmental and operational stress.
The goal is not to rigidly lock cables in place, but to provide controlled restraint. Cables naturally expand, contract, and respond to vibration. Clamps manage this behavior by limiting excessive movement while preventing stress from concentrating at terminations or unsupported spans. In modern installations, where cable density and system complexity are high, this control is essential.
Understanding clamps through an overview lens means examining three core aspects: materials, load behavior, and real-world applications.
Why Material Choice Determines Long-Term Performance
Material selection is one of the most critical design decisions in wire holder clamps. The clamp material must remain stable under mechanical load while resisting environmental degradation. Inappropriate material choices often lead to premature failure, even when clamps are correctly installed.
Common material considerations include resistance to corrosion, compatibility with cable insulation, and mechanical strength over time. In environments with humidity, temperature variation, or chemical exposure, material degradation compromises the clamp’s ability to hold cables securely.
Material choice influences:
- Structural stability under continuous load
- Resistance to corrosion and environmental exposure
- Interaction with cable insulation surfaces
- Fatigue resistance under vibration
A clamp that weakens or deforms introduces movement that undermines the entire support system.
Metal vs Non-Metal Clamp Materials
Metal clamps are often used in environments where high mechanical strength and durability are required. They perform well under heavy loads and sustained vibration but must be properly treated to resist corrosion.
Non-metal clamps, often made from engineered polymers, offer advantages in environments where electrical isolation, chemical resistance, or reduced weight is important. However, their load behavior and temperature tolerance must be carefully matched to the application.
Choosing between material types depends on:
- Expected load and vibration levels
- Environmental exposure
- Electrical isolation requirements
- Long-term maintenance expectations
The clamp material should complement the installation environment rather than simply meeting initial strength requirements.
Understanding Load Ratings Beyond Cable Weight
Load ratings are often misunderstood. The static weight of a cable is only one component of the stress a clamp must manage. In real installations, clamps are subjected to dynamic forces that exceed simple weight calculations.
Operational load includes:
- Cable movement caused by vibration
- Thermal expansion and contraction
- Additional load from bundled cables
- Accidental pulling during maintenance
A clamp rated only for static load may perform adequately at commissioning but fail over time as operational stresses accumulate. Load ratings must therefore be interpreted in context, accounting for how cables behave during normal system operation.
Static Load vs Distributed Operational Load
Static load refers to the weight of the cable resting on the clamp when the system is idle. Operational load reflects how that weight shifts and multiplies under movement, vibration, and temperature change.
Distributed support is key. Well-designed clamp systems spread load across multiple points, reducing the demand on individual clamps. Poor spacing concentrates stress, increasing the risk of deformation or loosening.
Effective load management depends on:
- Appropriate clamp spacing
- Even distribution of cable weight
- Avoidance of long unsupported spans
- Consideration of future cable additions
Load ratings are meaningful only when combined with thoughtful placement.
Cable Characteristics That Influence Clamp Design
Cables vary widely in construction. Diameter, stiffness, insulation hardness, and flexibility all affect how a cable interacts with a clamp. A clamp suitable for one cable type may damage another under identical load conditions.
Design must account for:
- Cable outer sheath material
- Sensitivity to compression
- Flexibility under load
- Surface friction characteristics
Clamps should hold cables securely without creating pressure points that deform insulation or restrict thermal movement. This balance protects both mechanical and electrical integrity.
Thermal Expansion and Controlled Restraint
Electrical cables expand and contract as temperatures change. This movement is normal and unavoidable, especially in systems with fluctuating loads. Clamps must allow limited, distributed movement rather than forcing all expansion to occur at a single point.
Overly rigid restraint leads to:
- Stress at terminations
- Insulation cracking
- Fatigue near entry points
Well-designed clamps provide controlled restraint that maintains routing while accommodating thermal behavior. This reduces long-term stress and preserves cable condition.
Vibration Resistance and Fatigue Behavior
Vibration is a constant factor in many industrial and commercial environments. Equipment operation, structural movement, and even foot traffic transmit mechanical energy into cable systems.
Clamps must resist loosening and fatigue under these conditions. Design features that support vibration resistance include stable mounting interfaces and materials that do not creep or crack under cyclic stress.
Effective vibration management:
- Prevents gradual cable migration
- Reduces abrasion at contact points
- Preserves connector integrity
- Maintains predictable routing
Without adequate vibration resistance, even properly installed clamps lose effectiveness over time.
Common Use Cases Across Electrical Systems
Wire holder clamps are used across a wide range of electrical applications. While the principles remain consistent, the specific demands vary by environment.
Typical use cases include:
- Industrial control panels and machinery wiring
- Commercial building electrical distribution
- Cable trays and ladder systems
- Data and communication infrastructure
- Infrastructure and utility installations
In each case, clamps support cables against movement, maintain separation, and preserve access for maintenance.
Industrial Environments
In industrial settings, clamps manage heavy cables, continuous vibration, and frequent system changes. Durability and load tolerance are critical, as failures can disrupt production.
Industrial clamps must handle:
- High mechanical stress
- Elevated temperatures
- Exposure to dust or chemicals
- Frequent maintenance activity
Material and load design are particularly important in these conditions.
Commercial and Building Systems
Commercial installations often involve high cable density in confined spaces. Organization and accessibility are key concerns, alongside fire safety and inspection requirements.
Clamps in these environments support:
- Clear routing for maintenance access
- Separation of power and data lines
- Compliance with safety inspections
- Long-term system adaptability
Predictable cable support reduces maintenance time and inspection risk.
Compliance and Engineering Standards Context
Electrical standards recognize cable support as a safety-critical element. Proper restraint reduces mechanical damage and fire risk while improving maintainability.
Organizations such as the International Electrotechnical Commission outline expectations for cable support and management as part of safe electrical system design. These standards emphasize that physical cable behavior is inseparable from electrical safety.
Understanding clamp design in this context helps align installations with accepted engineering practice rather than minimum compliance.
Maintenance and Inspection Implications
Clamps influence how easily systems can be inspected and maintained. Poorly designed or placed clamps obstruct access and complicate troubleshooting.
Well-designed clamp systems:
- Keep cables visible and accessible
- Maintain routing during partial disassembly
- Reduce the need for temporary restraints
- Support accurate documentation
These benefits reduce downtime and lower the risk of introducing new faults during maintenance.
Planning for System Growth
Electrical systems evolve. Additional equipment, regulatory changes, and capacity upgrades all drive wiring modifications. Clamp systems that anticipate growth adapt more easily.
Designing with future expansion in mind supports:
- Cleaner retrofits
- Lower rework risk
- Preservation of original routing logic
- Longer system lifespan
This forward-looking approach treats cable support as part of system architecture rather than a fixed detail.
Why Small Components Have System-Wide Impact
Wire holder clamps are small relative to other electrical components, but their influence extends across the system. Mechanical instability at the cable level affects insulation, connectors, safety, and reliability.
When clamps are poorly chosen or applied, failures often cascade. When they are properly designed and placed, they quietly prevent those failures from occurring at all.
Conclusion: Cable Support as an Engineering Discipline
Electrical systems rely on both electrical and mechanical integrity. While conductors carry current, their physical support determines how long and how safely they can do so. Wire holder clamps bridge this gap by controlling movement, managing load, and preserving order under real-world conditions.
A thorough electrical wire holder clamp overview places materials, load ratings, and use cases into operational context. When clamps are selected and applied with attention to environment, load behavior, and system evolution, they become foundational elements of reliable infrastructure rather than overlooked hardware.
