Color fastness testing is a critical quality control process in the textile industry, ensuring that fabrics retain their color through washing, rubbing, light exposure, and perspiration. At the heart of this essential testing lies the color fastness tester, a sophisticated instrument designed to simulate real-world conditions and predict how textiles will perform over time. For manufacturers, brands, and testing laboratories, investing in a reliable tester is not just about compliance—it’s about protecting brand reputation, reducing returns, and ensuring customer satisfaction.
What is a Color Fastness Tester?
A color fastness tester is a specialized laboratory instrument that evaluates how resistant a fabric’s dye is to various factors like washing, water, rubbing, and light. It subjects textile samples to controlled, repeatable conditions that mimic domestic or commercial laundering. The results predict whether a garment will fade, bleed, or stain other items in a wash, providing a quantifiable grade of color durability.
The WashTrue Washing Color Fastness Tester represents the evolution of this technology, integrating smart features with rigorous testing capabilities to deliver unmatched accuracy and efficiency.

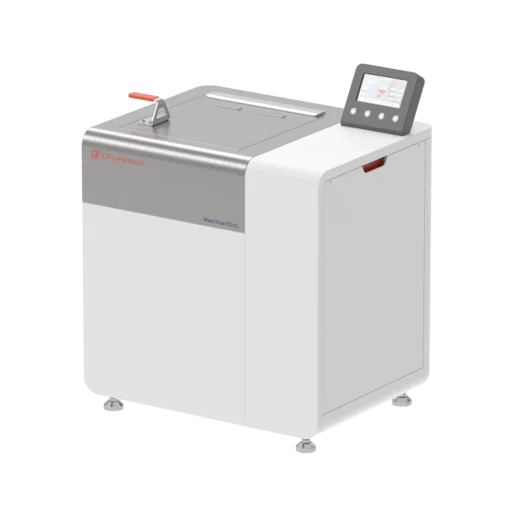

Introducing the WashTrue Washing Color Fastness Tester
The WashTrue tester is an intelligent, user-friendly instrument engineered for precision and reliability. It automates the complex process of washing fastness tests, ensuring results are consistent, accurate, and compliant with global standards.
Key Features and Intelligent Design
- Smart Touch Screen Control: An intuitive touchscreen interface puts complete control at your fingertips. Operators can easily select test standards, set parameters like time and temperature, and manage functions such as adding or draining water—all from one central panel. A buzzer alarm clearly signals test completion.
- Intelligent Temperature Management: At its core is an advanced algorithm for smart temperature control. The system doesn’t just reach a set point; it automatically adjusts and maintains the precise temperature range required by the standard, simulating real washing conditions to assess color stability accurately.
- IoT Connectivity and Data Management: This tester bridges the gap between the lab and the digital world. It can connect directly to ERP or LIMS systems for seamless data flow. Additionally, the companion SmarTexLab app (for smartphones or PCs) allows users to program tests, monitor progress, and access comprehensive test reports remotely. All test data and sample information are stored and compiled into detailed reports automatically.
- Built for Durability and Safety: Designed for the demanding lab environment, it features a robust SUS 316 stainless steel water tank, a heating system controlled by long-life solid-state relays for even temperature distribution, and an anti-jamming test rotating frame. Built-in safety devices, including protection against motor overheating and dry burning, safeguard both the operator and the instrument.
Supported International Test Standards
A major strength of the WashTrue tester is its extensive compliance, supporting a wide array of international protocols to meet global market requirements:
- ISO 105-C06:2010 (aligned with BS EN ISO 105-C06 and GB/T 12490-2014)
- AATCC 61-2013e3
- AATCC 190-2010e2(2016)e2
- M&S C4A
- NEXT TM 02
- And several other ISO, GB, and AATCC methods for various washing and color fastness tests.
How Color Fastness to Washing Testing Works: A Step-by-Step Overview
The process, standardized by bodies like ISO and AATCC, involves precise steps to ensure reproducible results.
1. Sample Preparation
A fabric sample (typically 100mm x 40mm) is stitched together with a piece of multifiber adjacent fabric or sandwiched between two pieces of single-fiber fabric. This adjacent fabric contains strands of different fibers (like wool, cotton, polyester) to test for staining.
2. The Test Procedure
- The prepared sample, a specified number of stainless steel balls (to create abrasion), and a measured volume of wash liquor (detergent solution) are sealed inside a test cup.
- The cup is attached to a rotating rack inside the tester’s main chamber, which is filled with water.
- The operator selects the standard (e.g., ISO 105-C06, condition C2S) on the touchscreen. The tester automatically controls the parameters: temperature (e.g., 60°C), time (e.g., 30 minutes), and rotation speed (40±2 rpm).
- The test runs, with the real-time temperature and a countdown timer displayed on the screen.
3. Result Evaluation
After washing, rinsing, and drying as per the standard, the sample is evaluated under controlled lighting.
- Color Change: The tested fabric is compared to its original state using a Grey Scale for Color Change.
- Staining: The multifiber adjacent fabric is examined to see if color bled onto it, using a Grey Scale for Staining.
The results are rated on a scale from Grade 1 (poor, significant change) to Grade 5 (excellent, no change). Advanced labs may also use a SpectroPhotometer for objective, digital grading.
Technical Specifications at a Glance
| Feature | Specification |
|---|---|
| Temperature Range | Normal temperature (~0°C) to 95°C |
| Heating Rate | 1.5 ± 0.5 °C/min |
| Temperature Accuracy | ± 2 °C |
| Rotation Speed | 40 ± 2 revolutions/minute |
| Power Supply | AC/220V/3N 50Hz-60Hz or AC/380V/3N 50Hz-60Hz |
| Dimensions (WxDxH) | 860 x 720 x 1060 mm |
| Weight | Approximately 150 kg |
Why Choose the WashTrue Color Fastness Tester?
- Unmatched Accuracy & Reliability: The intelligent temperature control and adherence to strict standards ensure test results you can trust for critical quality decisions.
- Exceptional Efficiency: Automating test cycles, data recording, and report generation saves valuable technician time and reduces human error.
- Future-Proof Connectivity: Integration with lab management systems and remote control via the SmarTexLab app streamline workflows and enable digital record-keeping.
- Global Compliance: Ready to use for a vast range of international standards, making it ideal for brands and suppliers serving global markets.
- Professional Support & Service: Includes access to responsive support, proactive maintenance notifications via the app, and the ability for remote software upgrades (OTA).
Investing in a robust color fastness tester like WashTrue is an investment in product quality and brand integrity. It provides the empirical data needed to make informed decisions, prevent costly failures, and deliver textiles that look better and last longer for the end-consumer.
If you are looking to elevate the quality assurance in your textile production or testing lab, understanding the capabilities of advanced testing equipment is the first step. For detailed specifications, pricing, or to see how the WashTrue tester can integrate into your specific operation, reaching out to the manufacturer for a consultation is highly recommended.
