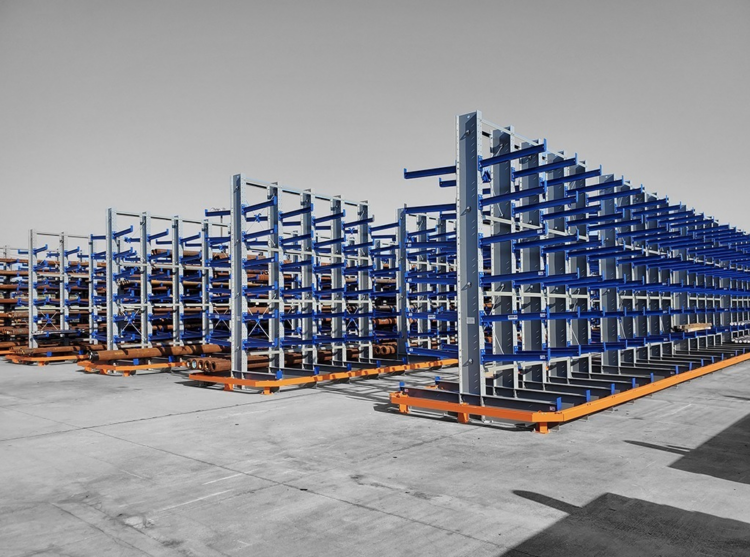

Heavy manufacturing and distribution operations require storage systems that can handle extreme weights while maintaining strict safety standards. Industrial cantilever racking is engineered for the most demanding applications, supporting loads that would crush standard shelving systems. These heavy-duty structures routinely handle steel beams weighing several tons, machinery components, and dense building materials. Properly designed industrial systems can achieve storage densities 3-4 times higher than floor stacking while providing safer access and better inventory control, though they require careful planning and compliance with structural standards.
Engineering for Extreme Loads
Industrial cantilever systems use significantly beefier components than their light-duty counterparts. Columns might be fabricated from 200mm x 100mm structural steel tube instead of the 100mm x 50mm used in lighter systems. Arm construction typically involves welded or bolted assemblies with reinforced tips to prevent deflection under heavy loads.
Base plates in heavy-duty systems can measure 1.5 meters or more in length, distributing enormous forces across the warehouse floor. This matters because concrete slab capacity varies. A floor rated for 5 tonnes per square meter won’t safely support a system that concentrates 20 tonnes onto a 2-square-meter base. Engineers calculate point loads and specify floor reinforcement when necessary.
Safety Critical Factors
The consequences of failure in an industrial setting are severe. A collapsing rack loaded with steel beams or machinery parts can cause catastrophic injuries and property damage. That’s why these systems need proper engineering certification and regular inspection.
Arm deflection limits are typically specified at 1-2% of arm length under full load. An arm extending 1.5 meters shouldn’t deflect more than 15-30mm. Excessive deflection indicates overloading or structural degradation. Visual inspections should check for bent arms, cracked welds, missing bolts, and damage to uprights or bases.
Column protectors are basically mandatory in industrial applications. Forklift impacts happen, and a damaged column can compromise the entire system’s stability. Heavy-duty guards absorb impacts that might otherwise bend structural members.
Space Maximization Strategies
Getting the most storage capacity requires balancing several factors. Taller systems obviously store more, but they need appropriate forklifts and adequate building height. Some industrial operations run cantilever systems up to 10-12 meters high, though this requires specialized handling equipment and potentially fire suppression considerations.
Double-sided configurations maximize floor space utilization. Instead of losing space to access aisles on both sides of the racking, you create one aisle serving two storage faces. For a warehouse storing steel products on both sides of a 4-meter aisle, this effectively doubles storage capacity compared to single-sided arrangements.
Arm length selection impacts capacity significantly. Longer arms obviously hold longer products, but they also reduce the load capacity per arm due to increased leverage forces. Sometimes using shorter arms with wider column spacing provides better overall capacity.
Load Distribution Practices
How you load the system affects both safety and capacity. Bottom-heavy loading (heavier items on lower arms) provides better stability. It’s also safer from a handling perspective since you’re not lifting multi-ton items to upper levels.
Even weight distribution across arms matters too. Don’t load one side of a double-sided system while leaving the other empty, as this creates unbalanced forces on the columns.
